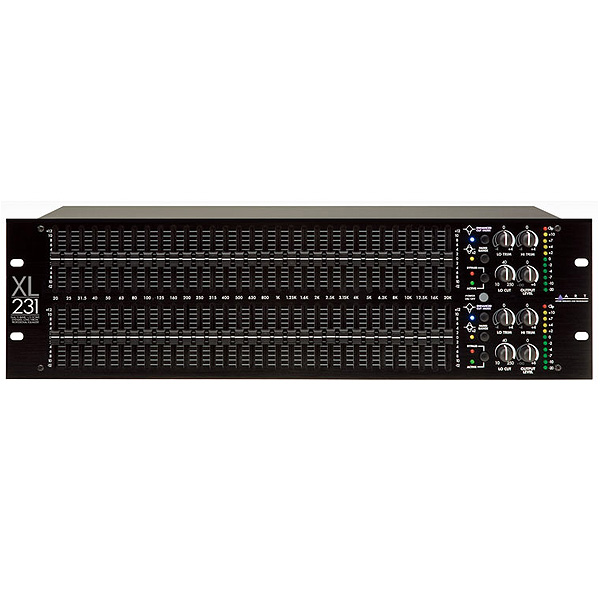

---EQUALIZER---
■Bands: 2 x 31, 1/3 Octave, ISO Spacing
■Type/Accuracy: Constant Q, 3% Center Frequency
■Slide Potentiometers: 45 mm, Positive Center Detent, Metal Shaft, Grounded Center Tap.

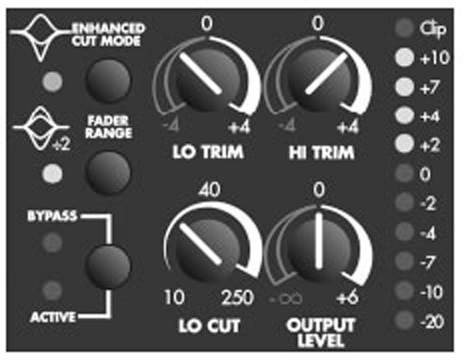

■Range: (±6 dB) or (±12 dB) Selectable
w/Enhanced Cut (+6/-9 dB) or (+12/-18 dB) Selectable
■Overall Gain Range: Off to +6 dB (sliders centered)
---INPUTS---
■Type: Active Balanced

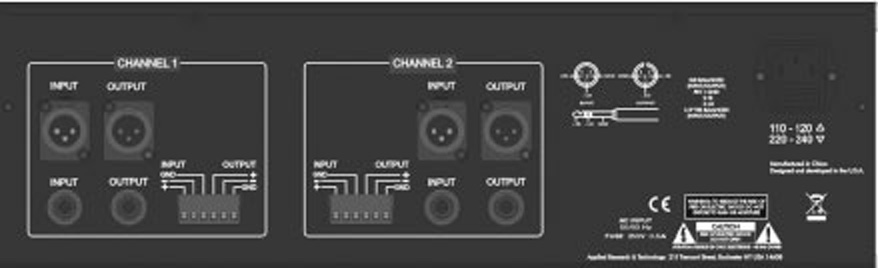

■Connectors: 3-Pin XLR, TRS 1/4" phone, Euroblock
■Impedance: 9.4K Ohms Balanced.
■Maximum Input Level: +24 dBu, Balanced, ?1% THD, [EQ and Level centered]
---OUTPUTS---
■Type: 3-Pin XLR, Euroblock - Active Balanced, TRS 1/4"phone - Impedance Balanced
■Connectors: 3-Pin XLR, TRS 1/4"phone, Euroblock
■Impedance: ? 200 Ohms
■Maximum Level: +26 dBu, Balanced, 20-20K Hz, into ?600 Ohms, ?1% THD
■RFI Input Filters: Yes
■Bypass Switching: Passive, Relay
■Clip LED Threshold: 3 dB below clipping. Sensed at all gain stages.
■High Pass Filter: 10 to 250 Hz − 12dB/Oct
■High Trim: ±4 dB @ 10 KHz
■Low Trim: ±4 dB @ 40 Hz
■Frequency Response: [EQ and Level centered, HPF fully counter clockwise]
(+0/-0.25 dB 20-20K Hz), (+0/-1 dB 17-50K Hz), (+0/-3 dB 10-80K Hz)
■THD+Noise: < 0.005%, @ +4 dBu, 20-20K Hz, 22 KHz BW, [EQ and Level centered]
■(typically 0.003% @ 1 KHz)
■IM Distortion (SMPTE): < 0.004%, @ +4 dBu, [EQ and Level centered]
■Signal to Noise Ratio: ? 99 dB, Ref. 0 dBu, 22 KHz BW, unweighted, [EQ and Level centered]
■Headroom: +24 dB, Ref. 0 dBu
■Dynamic Range: ? 123 dB, Ref: +24 dBu, 22 KHz BW
■Channel Separation: ? 90 dB @ 1 KHz, +4 dBu
■Common Mode Rejection: ? 60 dB @ 1 KHz
■Line Voltage: 95-125 VAC 50/60 Hz, 190-250 VAC 50/60 Hz
■Input AC Power: 31 Watts Typical
■Construction: All Steel Chassis, Aluminum Front Panel
■SIZE: 133 x 483 x 203 mm
■WEIGHT: 5.4 kg
■Note: 0 dBu = 0.775 Vrms
|
